WS-C3650-24TD-E 3650 series 24 Ports Gigabit PoE Uplink 10/100/1000 Data Base switch

  • 1
  • 2
  • 3

Brand Name : Cisco

Model Number : WS-C3650-24TD-E

Place of Origin : Beijing, China

MOQ : 2 pieces

Price : $335.00/pieces 2-49 pieces

Payment Terms : T/T, Western Union

Delivery Time : 3 working days

Private Mold : NO

Products Status : Stock

Ports : 24

Transmission Rate : 10/100/1000Mbps

Function : LACP, QoS, SNMP, stackable, VLAN Support

Communication Mode : Full-Duplex & Half-Duplex

Switch Capacity : 128G

Product Name : WS-C3650-24TD-E

Condition : Brand-new

Power Supply : Input:AC100-240V 50/60Hz

PoE Ports : 24 Ports

Product Description : Gigabit Ethernet Network Switch

Warranty : 1 Year

Package : Original Box

MOQ : 2 Pcs

Contact Now

Cisco Catalyst 3650 Series Switches Data Sheet

The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.

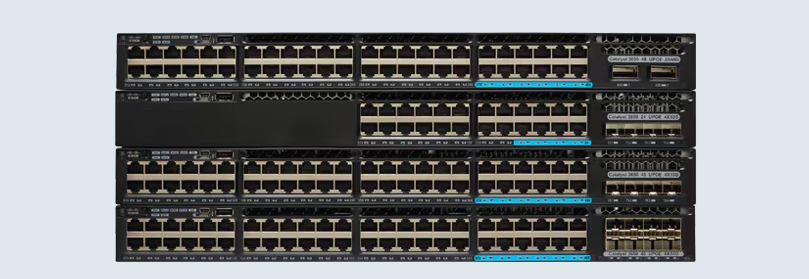

WS-C3650-24TD-E 3650 series 24 Ports Gigabit PoE Uplink 10/100/1000 Data Base switch

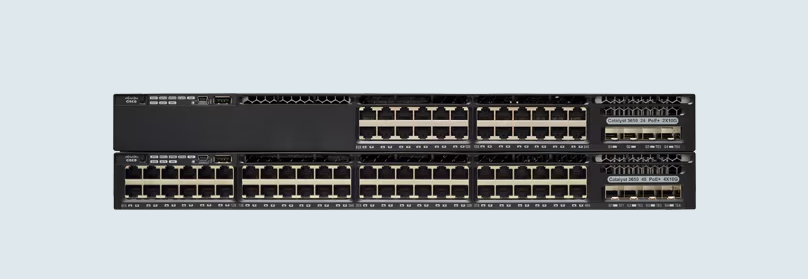

WS-C3650-24TD-E 3650 series 24 Ports Gigabit PoE Uplink 10/100/1000 Data Base switch

Technical Specifications

Capacity
Type
Virtual interfaces (VLANs)
Value
4000
Dimensions & Weight
Width
17.5 in
Depth
17.6 in
Height
1.7 in
Weight
15.15 lbs
Environmental Parameters
Min Operating Temperature
23 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 96% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Flash Memory
Installed Size
2 GB
Header
Compatibility
PC
Manufacturer
Cisco
Packaged Quantity
1
Product Line
Cisco Catalyst
Model
3650-24TD-E
Brand
Cisco
Interface Provided
Qty
24
Type
Management (mini-USB)
Connector Type
Type B
Comments
Management
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, KN22 Class A, KN24, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A
Authentication Method
RADIUS, Secure Shell (SSH), TACACS+
MTBF
661,800 hours
Height (Rack Units)
1
Color Category
Black
Networking
Type
Switch
Remote Management Protocol
CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Compliant Standards
IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Status Indicators
Active, Port duplex mode, Port transmission speed, Status, System
Ports Qty
24
Features
Access Control List (ACL) support, ARP support, DHCP snooping, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flexible NetFlow (FNF), IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Trunking, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
Routing Protocol
BGP-4, EIGRP for IPv6, IS-IS, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IP routing
MAC Address Table Size
32000 entries
Stackable
Stackable
Subcategory
Network hubs and switches
Advanced Switching
Layer 3
Manageable
Yes
Form Factor
Desktop, Rack-mountable
Jumbo Frame Support
9198 bytes
Subtype
Gigabit Ethernet
Performance
Type
Switching capacity
Value
88 Gbps
Ports
Qty
24
Type
10/100/1000
Ports (2nd)
Qty
2
Type
10 Gigabit SFP+
Power Device
Frequency Required
50/60 Hz
Power Provided
250 Watt
Installed Qty
1
Max Supported Qty
2
Nominal Voltage
AC 120/230 V
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Type
Internal power supply
Hot-Plug
Hot-plug
RAM
Installed Size
4 GB
Service
Support Details Type
Technical support
Support Details Service Included
Phone consulting
Support Details Full Contract Period
90 days
Service & Support
Type
Limited lifetime warranty
Service & Support Details
Response Time
Next business day
Slot Provided
Type
Stacking Module slot
Total Qty
1
Free Qty
1
Software
Type
Cisco IOS IP Services

Table 1. Cisco Catalyst 3650 Series Configurations

Models Fixed Uplinks Total 10/100/1000 Ethernet Ports Default AC Power Supply Available PoE Power
WS-C3650-24TS 4 x Gigabit Ethernet with Small Form‑Factor Pluggable (SFP) 24 250 WAC -
WS-C3650-48TS 48
WS-C3650-24PS 24 PoE+ 640 WAC 390 W
WS-C3650-48PS 48 PoE+
WS-C3650-48FS 48 PoE+ 1025 WAC 775 W
WS-C3650-24TD 2 x 10 Gigabit Ethernet with SFP+ and 2 x 1 Gigabit Ethernet with SFP 24 250 WAC
WS-C3650-48TD 48
WS-C3650-24PD 24 PoE+ 640 WAC 390 W
WS-C3650-24PDM 24 PoE+ Fixed 640 WAC 390 W
WS-C3650-48PD 48 PoE+ 640 WAC 390 W
WS-C3650-48FD 48 PoE+ 1025 WAC 775 W
WS-C3650-8X24PD 24 PoE+ (with 8 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 715 WAC 435 W
WS-C3650-12X48FD 48 PoE+ (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660 W
WS-C3650-48TQ 4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP 48 250 WAC
WS-C3650-48PQ 48 PoE+ 640 WAC 390 W
WS-C3650-48FQ 48 PoE+ 1025 WAC 775 W
WS-C3650-48FQM 48 PoE+ Fixed 975 WAC 775 W
WS-C3650-8X24UQ 24 UPOE (with 8 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 820 W
WS-C3650-12X48UQ 48 UPOE (with 12 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660 W
WS-C3650-12X48UR 8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660 W
WS-C3650-12X48UZ 2 x 40 Gigabit Ethernet with QSFP+ 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) 1100 WAC 660 W

Table 2. 1 and 10 Gigabit Fixed Uplink Configurations

 Interface Options
Fixed Uplink Ports 10 Gigabit Ethernet SFP+ Ports Gigabit Ethernet SFP Ports
4 x Gigabit Ethernet fixed uplink ports 0 4
4 x Gigabit Ethernet or 2 x 10 and 2 x 1 Gigabit Ethernet fixed uplink ports 2 0
0 4
2 2
4 x Gigabit Ethernet and 4 x 10 Gigabit Ethernet fixed uplink ports 4 0
0 4
2 2
3 1
1 3
8 x Gigabit Ethernet or 8 x 10 Gigabit Ethernet fixed uplink ports 8 0
0 8
Any combination of 10 Gigabit Ethernet and remaining 1 Gigabit Ethernet uplink ports
